CNG Cylinders for Automotive Vehicles  ←PRODUCTS
　
　

　

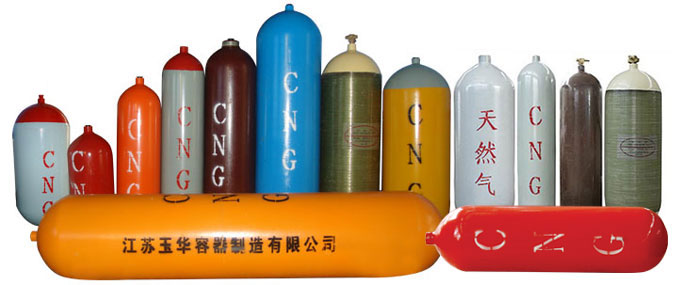

CNG seamless steel gas cylinders for automotive vehicles

NO Cylinder type No. Material Nominal water Volume(L) Nominal working Pressure Hydraulic test Pressure Weight
(Kg)		 Length
(mm)		 Ambient
Temperature
In duty(℃)		 Design Thickness
(mm)

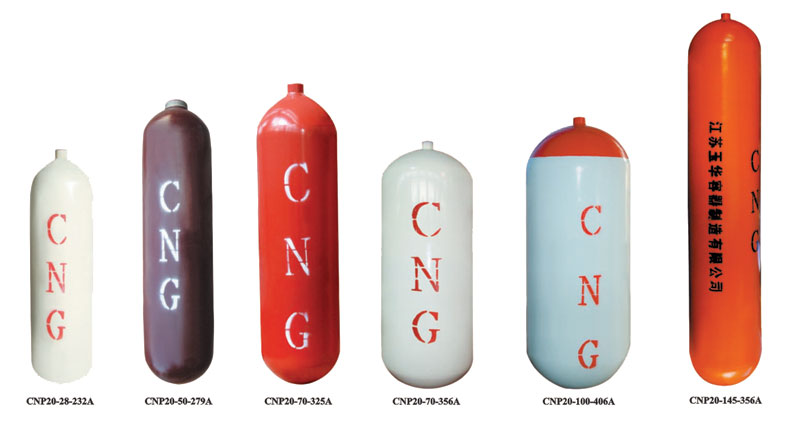

1 CNP20-(20 28 34)-232A
ISO11439		 30CrMo
 34CrMo4		 20 200(Bar) 300(Bar) 27 665 -40~65 6.0
28 35 880
34 41 1040
2 CNP20-(40-90)-279A
GB17258		 30CrMo 40 20(MPa) 33.4(MPa) 58 910 -50~60 7.7
50 69 1100
60 80 1290
70 91 1480
80 101 1670
90 113 1860
3 CNP20-(60-100)-325A
GB17258		 30CrMo 60 20(MPa) 33.4(MPa) 93 1020 -50~60 9.0
70 105 1160
80 117 1300
90 129 1440
100 140 1580
4 CNP20-(57-145)-356A
ISO11439		 34CrMo4 57 200(Bar) 300(Bar) 61 810 -40~65 7.6
65 68 895
70 74 950
80 82 1060
90 90 1170
100 98 1280
110 106 1390
120 114 1505
130 122 1615
140 130 1725
145 134 1780
5 CNP20-(70-145)-406A
ISO11439		 34CrMo4 70 200(Bar) 300(Bar) 81 790 -40~65 8.7
80 89 875
90 97 960
100 105 1045
110 113 1130
120 121 1215
130 129 1300
140 137 1385
145 141 1425
　
